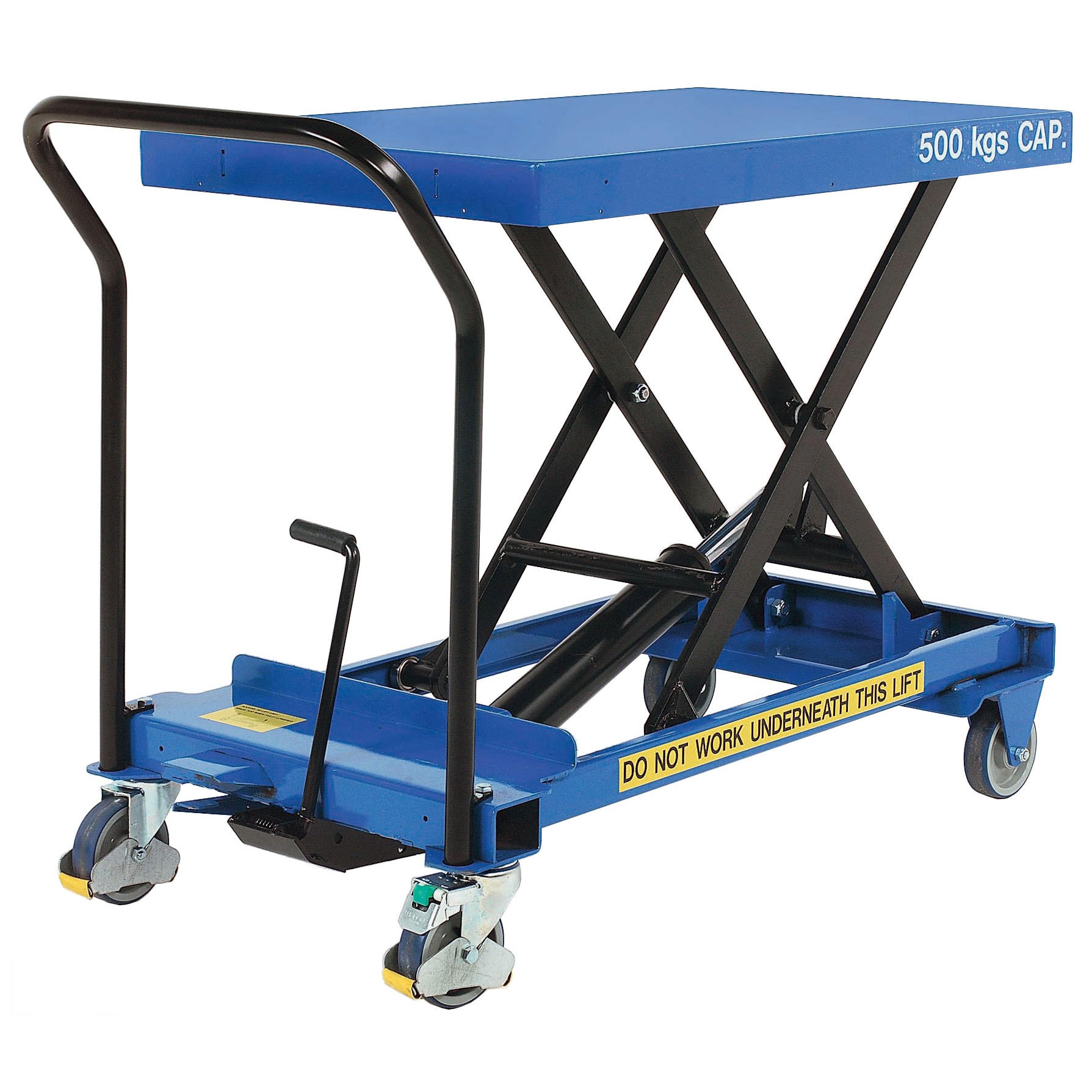

Elevation Single Scissor Lift Tables - Medium Duty

  • Manufactured in the UK
  • Medium duty single scissor lifts
  • Safe, light, easy to use and highly manoeuvrable

Elevation Single Scissor Lift Tables - Medium Duty
Ex VAT
£787.00
Was £0.00
SAVE
Inc VAT
£944.40
£0.00
Product Code: B780
FREE UK Mainland Delivery - orders over £50+VAT
Delivery:
5 working days
N. Ireland, Highlands & Islands - Contact us for a price
COVID-19 – delivery times given are accurate, but in some instances items are taking a little longer than advertised due to circumstances beyond our control. Please bear with us.
  • Manufactured in the UK
  • Medium duty single scissor lifts
  • Safe, light, easy to use and highly manoeuvrable
  • High quality robust construction
  • Choice of 300kg or 500kg capacity lift
  • Can be used safely at any height
  • Manual or battery electric operation
  • Fitted with an overload valve and slow lowering valve to control lowering speed
  • Heavy duty arm, bearings and hydraulics
  • Nylon bushes fitted at all arm end hinge points
  • Folds flat for easy transportation and storage
  • Unique lift up table top allows safe and easy maintenance – can only be lifted when table is the closed position
  • Wheels are fitted with sealed bearings and polyurethane tyres – one castor fitted with a total stop brake
  • Conforms to EU Standards BSEN 1570 and BS:5323:1980
  • One year parts & labour warranty

Battery Electric Operated Model
  • Includes 12v traction battery and charger
  • Safety cut-off bar fitted to the underside of the platform, which prevents table from lowering in the case of an obstruction
  • Remote push button control up/down operation
  • Emergency stop switch
  • Safe design plug-in charger
  • Strong electrical flex
  • Electrical contacts/motors conform to EQ1570/ EN 60529

Due to the size and weight of these items, they are shipped on a pallet and offloading facilities will be required. If you need delivery to kerbside or inside your premises, please call us for a price.
Please note that they are made to order and non returnable unless faulty or damaged. In the event of any damages, please contact Equip4Work immediately. If you have any queries or specific requirements, please do not hesitate to contact our sales team on 0333 234 4233


Dimensions mm B780  B780E  B781 B781E
Platform Width  500 500 610 610
Platform Length 840 840 1030 1030
Overall Width 500 500 610 610
Overall Length 1050 1130 1320 1330
Closed Height 335 335 340 340
Raised Height 840 840 900 900
Handle Height 860 860 925 925
Wheel Diameter 125 125 125 125
Weight Capacity 300kg  300kg 500kg 500kg
Approx Unit Weight  83kg  130kg 109kg 158kg
Operation Manual Battery Manual Battery
