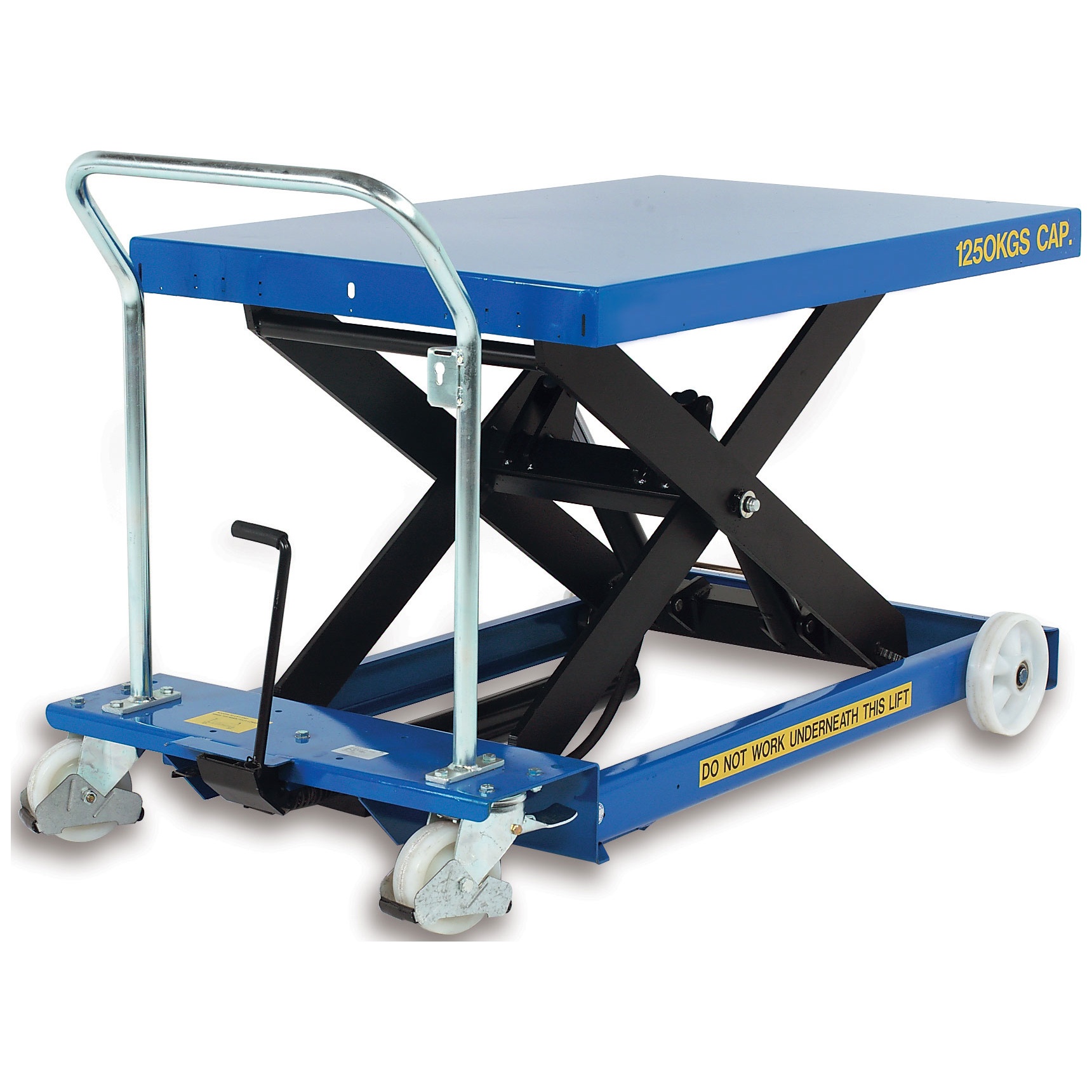

Elevation Single Scissor Lift Tables - Heavy Duty

Information
Dimensions

Information

Manufactured in the UK
Heavy duty single scissor lifts
Robust construction
Manoeuvrable
Choice of 300kg, 1000kg or 1250kg capacity lift
Can be used safely at any height
Manual or battery electric operation
Fitted with an overload valve and slow lowering valve to control lowering speed
Heavy duty arm, bearings and hydraulics
Nylon bushes fitted at all arm end hinge points
Folds flat for easy transportation and storage
Unique lift up table top allows safe and easy maintenance – can only be lifted when table is the closed position
Heavy duty castor wheels – one fitted with a total stop brake
Conforms to EU Standards BSEN 1570 and BS:5323:1980
One year parts & labour warranty

Battery Electric Operated Model

Includes 12v traction battery and charger
Safety cut-off bar fitted to the underside of the platform, which prevents table from lowering in the case of an obstruction
Remote push button control up/down operation
Emergency stop switch
Safe design plug-in charger
Strong electrical flex
Electrical contacts/motors conform to EQ1570/ EN 60529

Due to the size and weight of these items, they are shipped on a pallet and offloading facilities will be required. If you need delivery to kerbside or inside your premises, please call us for a price.
Please note that they are made to order and non returnable unless faulty or damaged. In the event of any damages, please contact Equip4Work immediately. If you have any queries or specific requirements, please do not hesitate to contact our sales team on 0333 234 4233

Dimensions

Dimensions mm	B782	B782E	B783	B783E	B784	B784E
Platform Width	840	840	840	840	1000	1000
Platform Length	1350	1350	1350	1350	2000	2000
Overall Width	860	860	860	860	1000	1000
Overall Length	1650	1650	1650	1650	2350	2350
Closed Height	360	360	360	360	360	360
Raised Height	1050	1050	1050	1050	1050	1050
Handle Height	1010	1010	1010	1010	1010	1010
Wheel Diameter	150/200	150/200	150/200	150/200	150/200	150/200
Weight Capacity	800kg	800kg	1250kg	1250kg	1000kg	1000kg
Approx Unit Weight	222kg	270kg	230kg	278kg	350kg	397kg
Operation	Manual	Battery	Manual	Battery	Manual	Battery
